Lightweight Gin Yeti rescue parachute is like its competitors ultra-light and ultra-compact, but it offers up to 40% more surface area. New sizes for 2018!

Location Fee (per item)
Collection (Spain) £0.00
UK £10.00
Europe £25.00

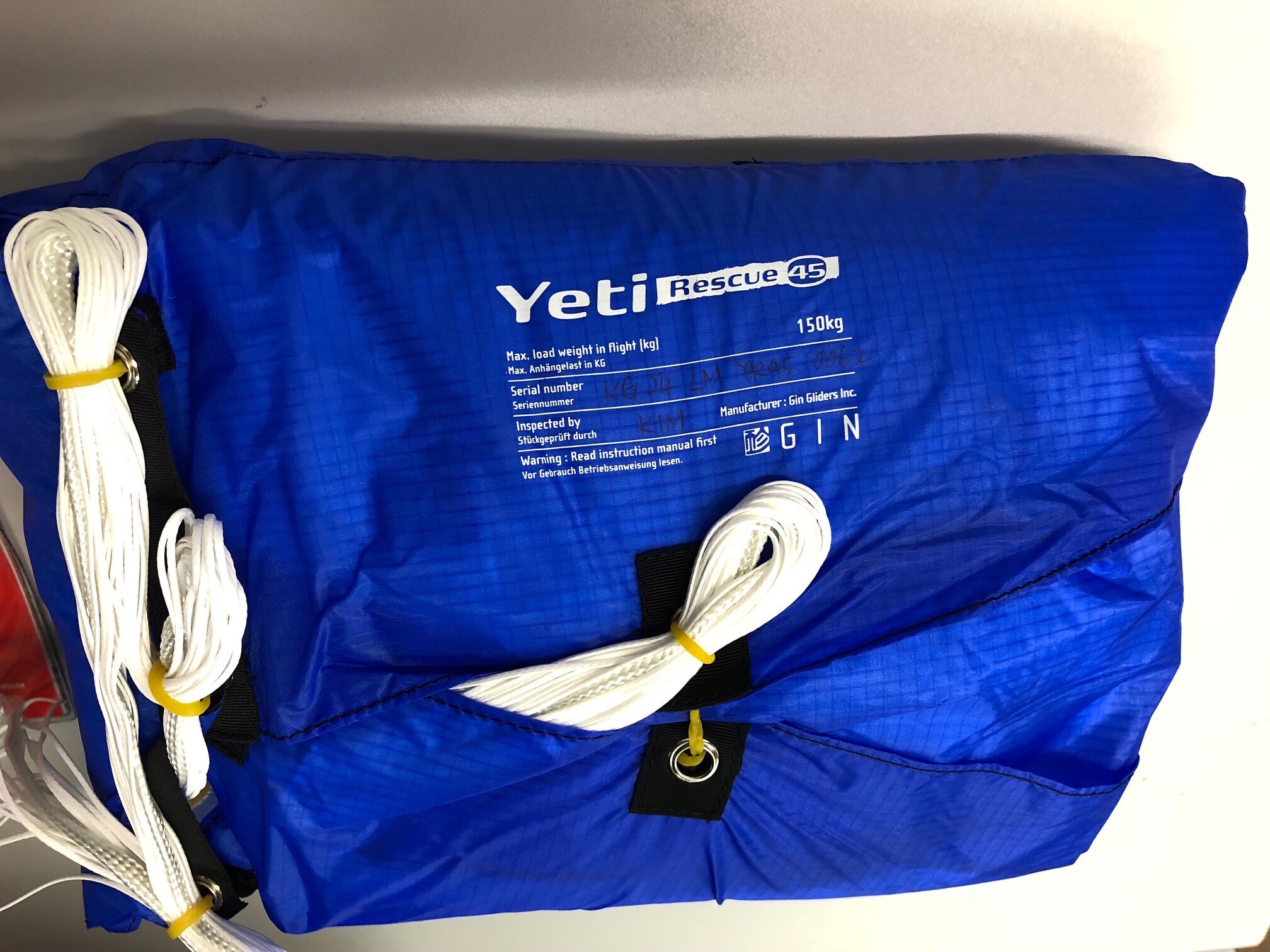

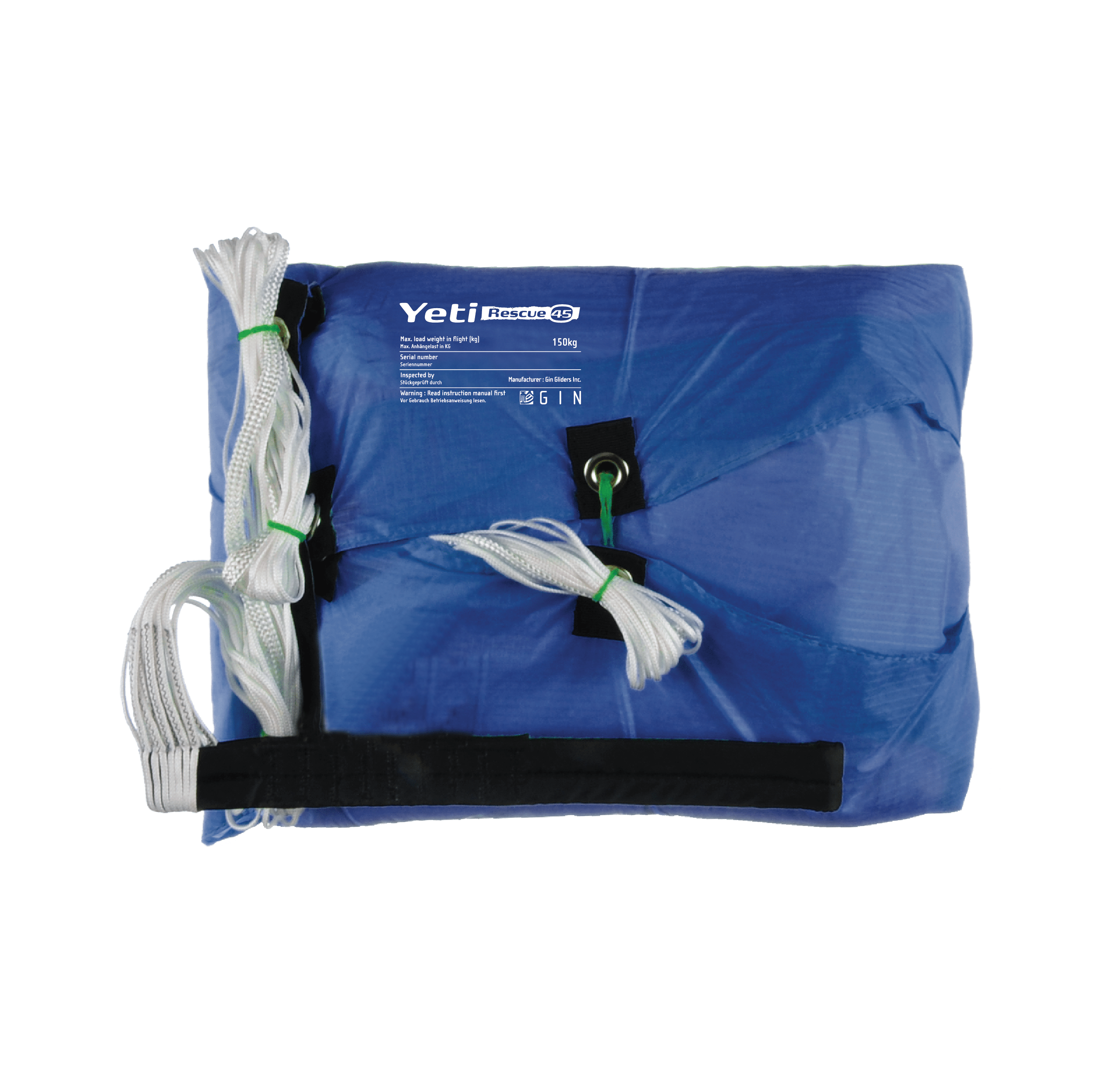

The new GIN Yeti rescue parachute is—like its competitors—ultra-light and ultra-compact, but it offers 40% more surface area.

The medium size weighs only 1.5 kg, yet it offers a surface area of 35 m2 and a certified sink rate of 5 m/sec., at a maximum weight in flight of 100 kg.

We all know how a large surface area is important for the safety of a rescue parachute.

Gin Gliders’ design brief for this new rescue was lightweight, but without compromising the surface area. 2 years of development and testing were necessary to reach this high standard of technical performance.

  • Certified EN-12491.
  • The Yeti Rescue is delivered with inner bag.

Technical specifications

SIZE #27 #35 #40 #45 *New 2018* #50 #60
Area 26.9 34.2 40.0 45.0 50.2 60.96
No. of gores 20 20 20 20 20 24
Line Length (m) 4.7 5.3 5.7 7.63 8.04 8.85
Centre line (m) 5.24 5.89 6.34 6.71 7.08 7.78
Weight (kg) 1.25 1.5 1.75 2.03 2.6 3.1
Sink rate at max. load (m/s) 5.07 5.03 5.13 5.25

5.2 (160kg)
5.4 (180kg)

5.17
Max. load (kg) 80 100 120 150 180 220



Click to download

Gin yeti rescue manual available at FlySpain shop

Click here to download 5.87 MB - pdf
