reserve steel mailion
reserve steel mailion
reserve steel mailion

7mm Stainless Steel Square Maillon Rapide for connectinf reserve parachutes

LocationFee (per item)
Collection (Spain)£
UK£4.00
Add to basket

£15.99 inc. VAT

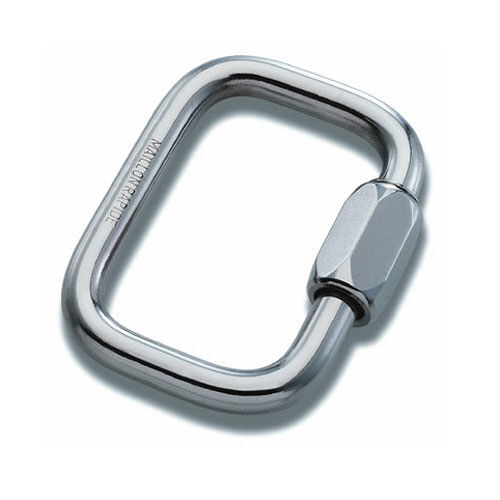

7mm Stainless Steel Square Maillon Rapide

Use as single point, master connection between your parachute bridle loop (which generally comes with your parachute) and a Y-bridle (which normally comes with your harness, or is purchased as an accessory).

Suitable for attaching single point reserves to bridles, mostly used for 18 - 26 mm flat webbing. Ideally use a neoprene cover, elastic bands or heat shrink to stop movement and rotation once fitted.

 The best strength/weight connector on the market, manufactured in France by Peguet.

Ideal for any application calling for reliable strength, smallest size and lightest weight.

NOTE: Steel maillons are stamped with a "Working Load Limit" (WLL) corresponding to 20% of their minimum breaking strength (BL). The WLL is the maximum load the manufacturer guarantees will not deform the maillons, allowing opening of the screw closure with fingers.

WARNING: When using steel maillons, double-check and triple-check that they are screwed shut properly as part of every pre-flight check. Tightening should be done with fingers. A spanner may be used carefully, just give them a 'nip'. Threadlock compound or liquid is not recommended.

WLL: 625kg
BL: 3125kg
Total length: 63.5mm
Weight: 66g
